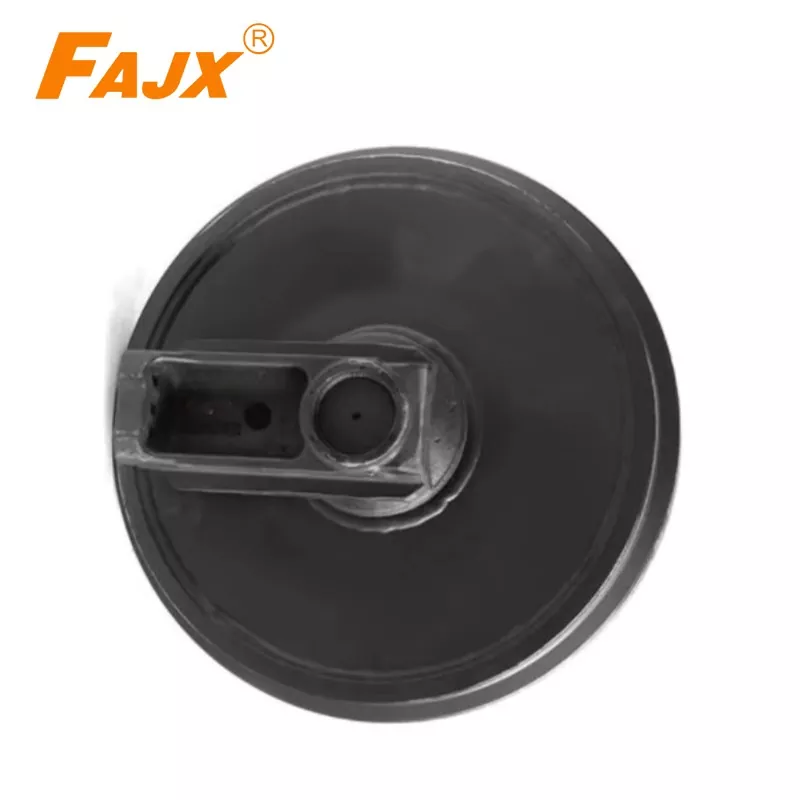

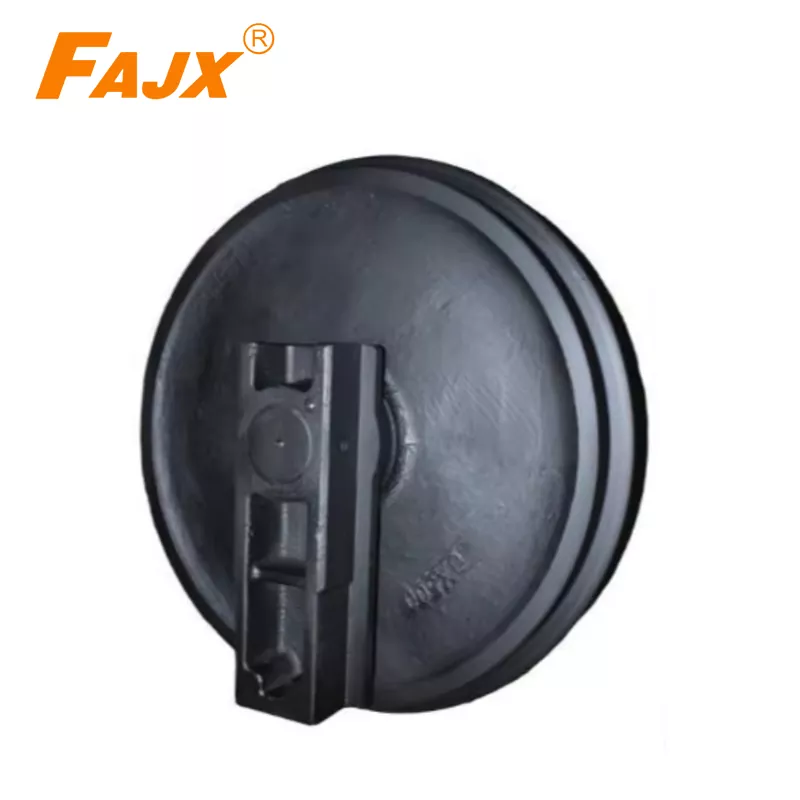

Idler for Kobelco SK200 24100N6417F1

From years of production experience in excavator undercarriage systems, we understand how critical the front idler is for the Kobelco SK200 working under harsh environments such as mining, quarrying, and earthmoving projects.

The Idler for Kobelco SK200 24100N6417F1  is not just a replacement part—it is a key load-bearing and guiding component that directly affects track stability and machine efficiency.

In real job site feedback, common issues from low-quality aftermarket idlers include:

· Uneven track wear caused by poor alignment

· Seal failure due to weak sealing structure

· Cracking under heavy impact loads

To solve these problems, we manufacture each unit with controlled forging structure, precision machining, and deep heat treatment processes.

Technical Specifications

· OEM Part Number: 24100N6417F1

· Compatible Model: Kobelco SK200 / SK210

· Material: High-strength alloy steel (35MnB / 50Mn)

· Surface Hardness: HRC 52–58

· Induction Hardening Depth: 5–8 mm

· Sealing System: Lifetime-sealed floating oil seal + copper alloy bushing

· Service Life: 2000+ working hours (depending on working conditions)

Factory Manufacturing Standards

As a professional undercarriage manufacturer, we control the full production chain in-house instead of sourcing semi-finished parts.

Our production process includes:

· Precision casting / forging with structural density control

· CNC machining for exact dimensional accuracy

· Medium-frequency induction hardening for wear resistance

· 100% UT (Ultrasonic Testing) and MT (Magnetic Particle Testing) inspection

Each Idler for Kobelco SK200 24100N6417F1  is traceable by batch number, ensuring stable quality for international OEM and aftermarket supply.

Compared with general trading suppliers, our factory provides:

· More consistent batch quality

· Longer wear resistance in real mining conditions

· Direct factory pricing without middlemen

Performance Comparison with Market Alternatives

Many low-cost aftermarket idlers in the market suffer from:

· Shallow heat treatment layers

· Recycled or low-grade steel material

· Poor sealing performance under muddy or sandy conditions

Our product advantage:

· Deep hardened tread surface for anti-wear performance

· Reinforced internal structure for impact absorption

· Fully sealed design to prevent oil leakage and contamination

This difference becomes especially significant in long-hour excavation and mining operations where downtime cost is high.

Application Scope

The Idler for Kobelco SK200 24100N6417F1  is widely used in:

· Mining operations

· Quarry and stone crushing sites

· Road construction projects

· Earthmoving and land development

· Heavy-duty continuous working environments

Packaging and  Delivery

To ensure safe international transportation, each unit is carefully protected with:

· Anti-rust oil coating

· Heavy-duty shrink wrapping

· Reinforced fumigation-free wooden pallet

· Moisture-proof export packaging

Standard lead time: 7–15 days depending on order volume.

FAQ

Q1: Is this idler fully compatible with original Kobelco SK200?
Yes. It is CNC-machined strictly according to OEM dimensions for direct installation without modification.

Q2: Does it require maintenance or lubrication?
No maintenance is required. Each unit is pre-filled with high-grade lubricant and sealed for lifetime operation.

Q3: Can you support OEM branding or customization?
Yes, we provide OEM services including logo casting, color painting, and customized packaging.

As a factory specializing in excavator undercarriage parts, we focus on real durability and field-tested performance rather than theoretical specifications. The Idler for Kobelco SK200 24100N6417F1  is designed to reduce maintenance costs, improve track stability, and support long-term heavy-duty operation.
