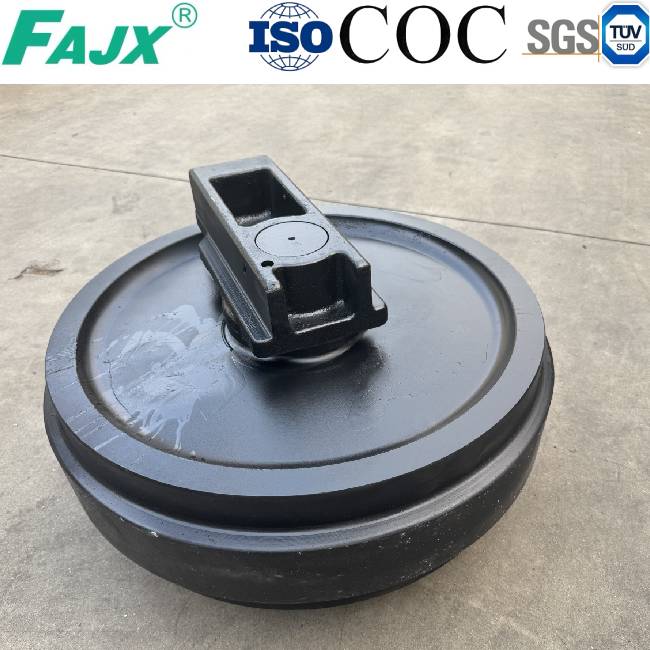

9306002 Excavator Front Idler ZAX350

Model:9306002

Hitachi 9306002 Track Idler Roller Replacement Undercarriage Idler ZAX350-5GHigh Wear Resistant ZAX350-5G Idler Wheel Hitachi 9306002 Excavator Guide Idler With Long Service LifeThe function of cast idler wheels in excavatorsProfessional English Translation (Excavator Undercarriage Industry Standard......

Colors:
Black.Yellow or Customized
Material:
35MnB/50MnB
Technics:
Machining &Heat Treatment
Suitable:
Excavator
Hardness Depth:
8-12mm or Customized

Send Inquiry

Product Description

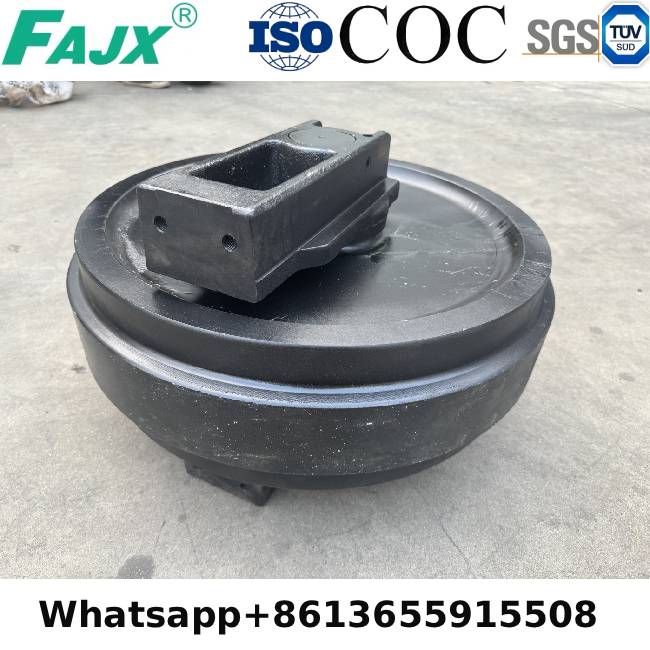

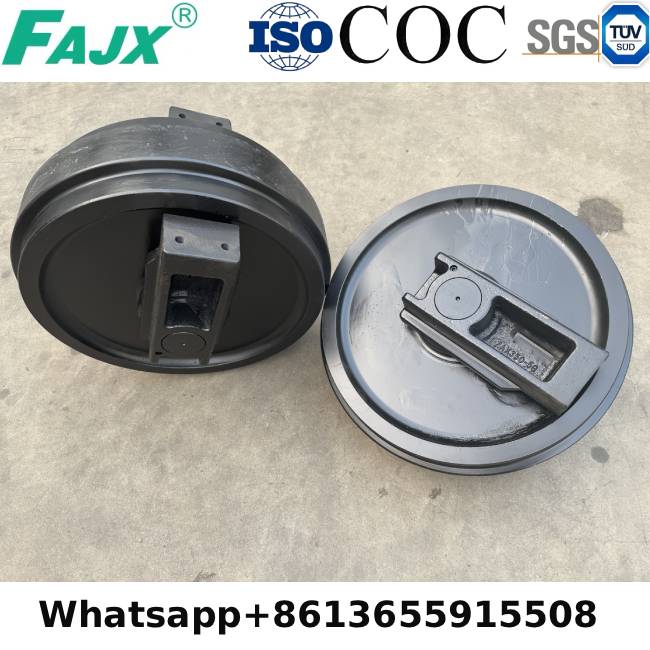

Hitachi 9306002 Track Idler Roller Replacement Undercarriage Idler ZAX350-5G

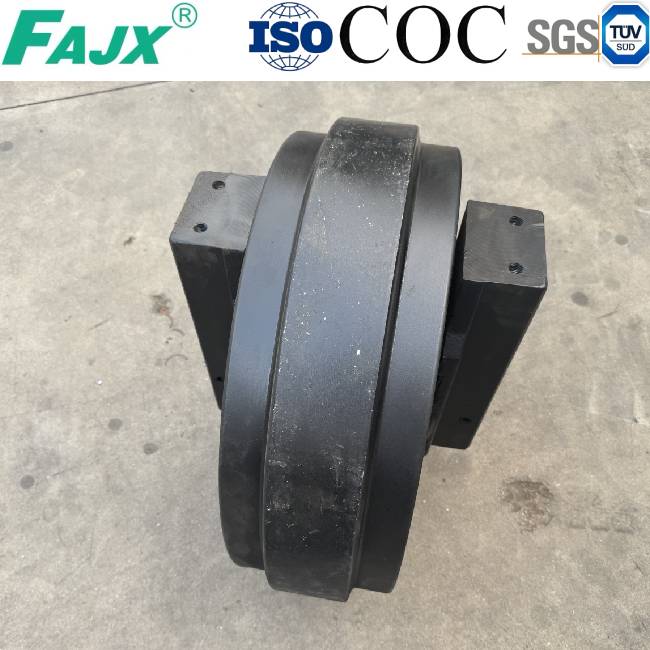

High Wear Resistant ZAX350-5G Idler Wheel Hitachi 9306002 Excavator Guide Idler With Long Service Life

The function of cast idler wheels in excavators

Professional English Translation (Excavator Undercarriage Industry Standard)

I. Core Guiding Function

It guides the track to rotate along the correct path, prevents track deviation and derailment, stabilizes the track travel route and avoids track falling-off failures.

II. Supporting & Pressure Equalizing Function

On most machine models, it also serves as a track roller. It enlarges the track ground contact area, reduces ground specific pressure, and improves the machine’s trafficability and overall stability.

III. Tension Adjusting Function

It cooperates with the tensioner to adjust track tightness, reduces track sagging and bouncing, cuts down wear and extends the service life of tracks.

IV. Shock Absorbing & Buffering Function

It absorbs impact force transmitted from the ground, lessens machine vibration, and enhances smoothness during traveling and operation.

V. Auxiliary Control Function

It ensures smooth track movement, indirectly improves the machine’s steering flexibility, and enables more precise movement and operation in narrow spaces.

Model	A	E	B	C	D	P	H	L	M
E325	233	120	192	95	290	60	328	360	4-M20
E330	267	135	208	105	350	60	370	400	4-M20
E345	271	158	208	105	325	80	370	401	4-M20
E385	344	180	270	127	360	100	440	480	4-M24
DH55	160	85	95	40	204	0	50	212	0
DH80	162	70	100	44	170	40	237	250	4-M16
DH258	256	105	160	85	318	65	204	355	4-M16
DH280-3\DH300	235	120	190	102	324	70	98	367	4-M16
DH220-9	213	108	160	85	287	64	252	327	4-M16
DH360	288	120	200	102	360	65	290	410	4-M20
DH220	213	105	160	85	287	64	80	327	4-M16
DH550	288	120	208	105	360	65	290	410	4-M20
DH420	288	102	200	102	375	65	290	422	4-M20
R60-5	150	80	95	40	180	50	200	220	4-M12
R80-7	170	90	100	44	200	0	162	250	2-M16
R130LC	190	75	138	70	210	0	175	266	2-M16
R200	256	105	160	85	300	60	330	346	4-M20
R225-7	256	105	160	85	310	65	212	355	4-M16
R290-3	290	120	190	102	360	65	288	402	4-M16
B305	288	130	200	102	360	65	290	406	4-M16
R450	290	120	208	105	360	65	290	413	4-M22
R360	290	105	190	102	360	65	295	402	4-M16
R914	252	110	160	85	320	65	250	360	4-M16X1.5
R916	230	110	160	84	300	65	260	340	4-M16
R936	290	106	202	102	350	65	250	400	4-M16
ZAX70	180	75	100	44	225	50	80	262	4-M14
ZAX200\EX200-6	224	105	160	85	287	64	107	327	4-M16
ZAX200-1	235	110	160	84	285	65	108	345	4-M16
ZAX240-5G	236	108	160	85	287	64	241	350	4-M16
ZAX470	272	144	208	105	330	85	225	380	4-M22
ZAX330-5G	260	118	200	102	324	70	250	368	4-M16
ZAX600	324	155	234	116	380	90	115	450	4-M24
ZAX800	330	156	270	127	400	90	117.5	480	4-M24
ZAX850-3	348	156	270	127	400	90	343	510	4-M24
SH55	117	90	97	45	166	64	47	193	4-M10
SH60	168	85	100	44	230	64	18.5	257	4-M10
SH75	135	100	100	44	194	65	55	218	4-M10
SH120	190	114	136	67	265	80	24	305	4-M16
SH265	190	114	136	67	265	80	24	305	4-M16
SH120-A3	160	135	136	67	244	80	62	282	4-M16
SH200	204	122	160	85	285	90	46	322	4-M16
SH300-3	250	140	190	102	345	90	100	387	4-M16
SH300	255	145	190	102	344	105	387	33	4-M16
SH450	303	165	220	105	415	120	125	457	4-M16
SH460	280	170	220	105	386	120	130	430	4-M16
EC55B	104	100	95	50	132	68	220	172	4-M12
EC140	207	90	136	67	260	55	120	298	4-M12
EC140-3	200	90	136	67	230	50	245	268	4-M14
EC210	240	102	160	85	300	65	292	346	4-M16
FC290	290	110	200	102	360	65	290	406	4-M16
EC460	290	126	208	105	360	70	315	430	4-M20
TB150	204	105	95	42	140	70	234	262.5	4-M12

FAQ

Q1. How do you ensure the parts you send are high quality?

Once we receive the raw material we will do the chemical composition testing and in production, our QC will do the random inspection of every lot of the dimensions, appearance, mechanical properties hardness, impact value, etc. To make sure every part is qualified.

Q2. What is the payment term?

Usually 50% deposit and the balance before the shipment or against the BL copy. TT, lc is welcome.

Q3. If we want to do our logo, is that acceptable?

Yes, OEM & ODM are welcome.

Q4. What's the lead time?

For the normal order, it usually takes 15-30 days after receiving the deposit as agreed.

Q5. What kind of package do you offer?

Normally we use the export standard pallets, if you have any special requirements, we can discuss them.
